₹1,949.00 ( Incl. GST )

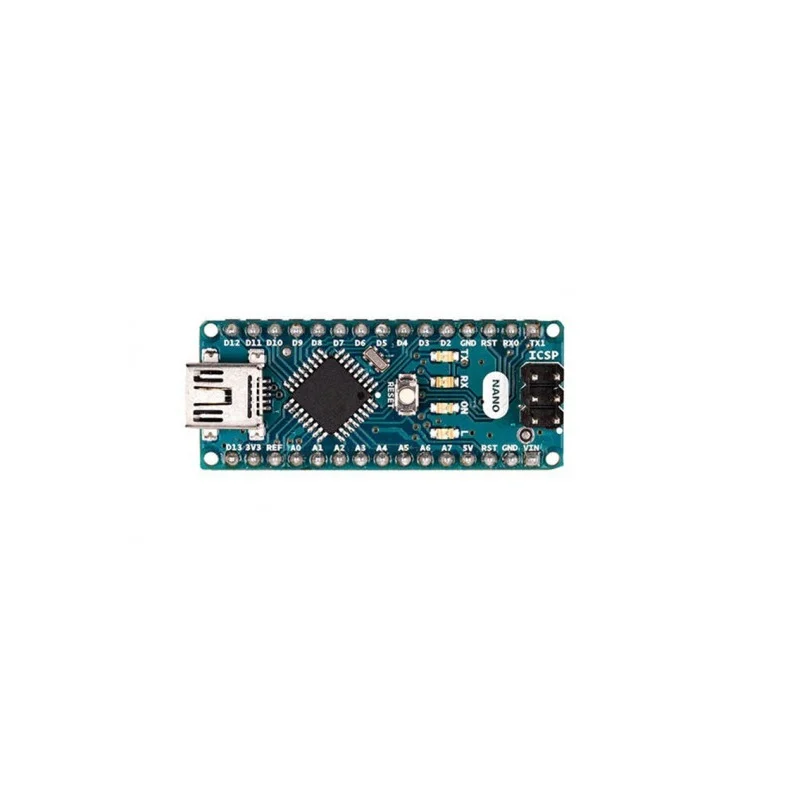

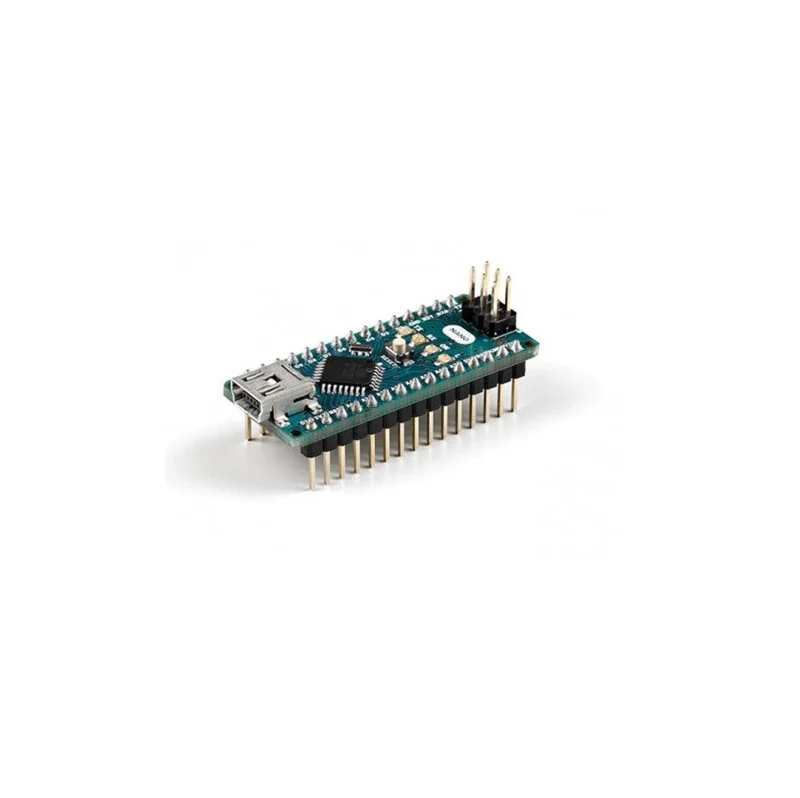

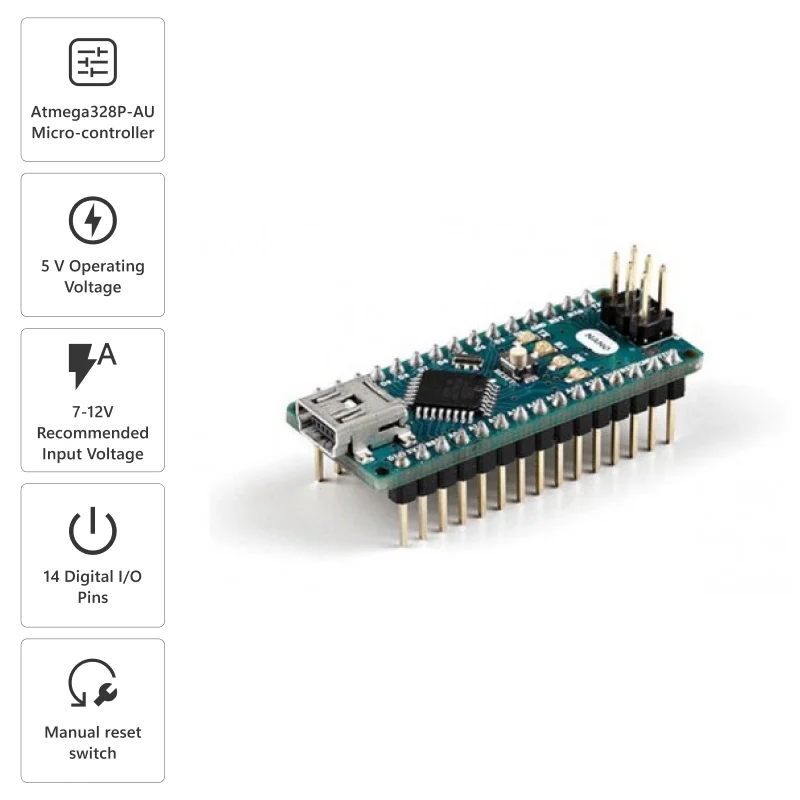

This Arduino Nano is an Original Arduino Nano Board. It is a breadboard-friendly board based on the ATmega328P from Arduino officials made in Italy. It has more or less the same functionality as the Arduino Duemilanove but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.
The original Arduino Nano is a surface mount breadboard embedded version with integrated USB. It is the smallest, most complete, and breadboard-friendly. It has everything that Diecimila/Duemilanove has (electrically) with more analog input pins and an onboard +5V AREF jumper. Physically, it is missing a power jack. The Nano automatically senses and switches to the higher potential source of power, there is no need for the power select jumper.
Nano’s got the breadboard ability of the Boarduino and the Mini+USB with a smaller footprint than either, so users have more breadboard space. It’s got a pin layout that works well with the Mini or the Basic Stamp (TX, RX, ATN, GND on one top, power and ground on the other). This new version 3.0 comes with ATMEGA328 which offers more programming and data memory space. It has two layers. That makes it easier to hack and more affordable.
You end up paying less with Nano than Mini and USB combined!
You can find in the Getting Started section all the information you need to configure your board, use the Arduino Software (IDE), and start tinker with coding and electronics.
You can find in the Getting Started section all the information you need to configure your board, use the Arduino Software (IDE), and start tinker with coding and electronics.

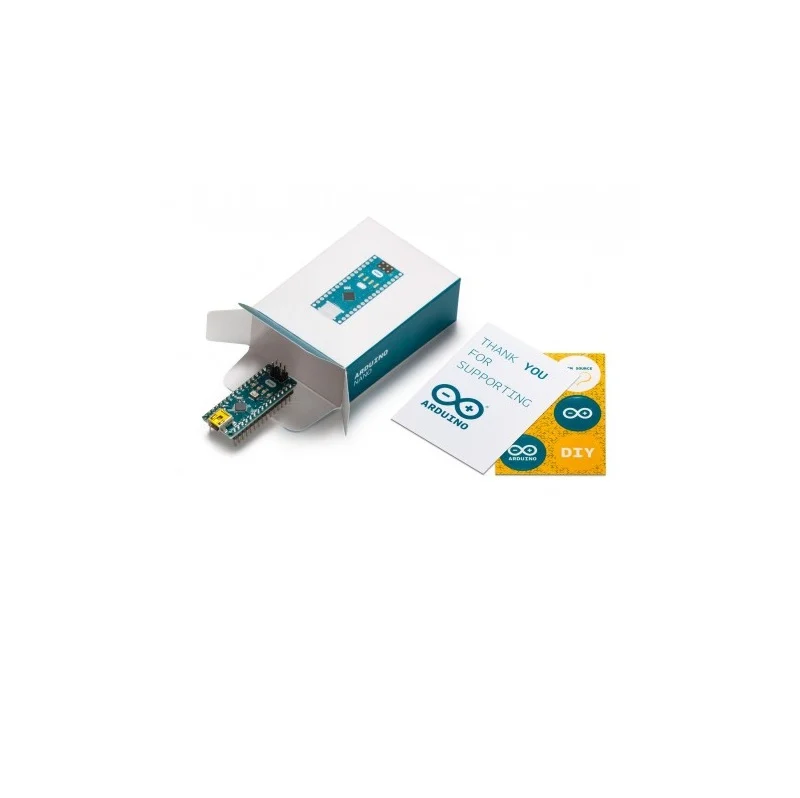

1 x Original Arduino Nano A000005

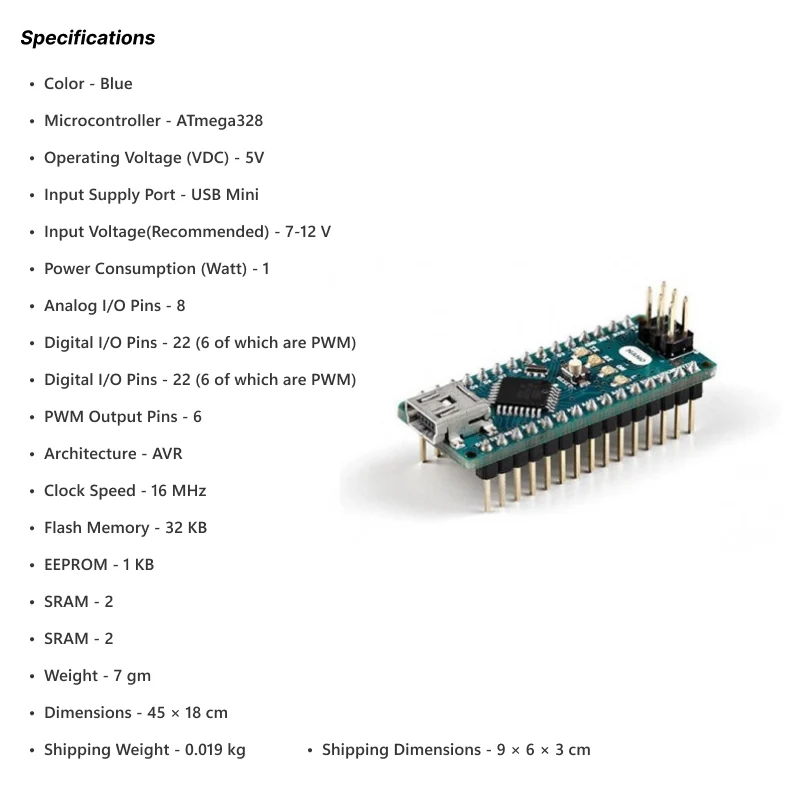

| Color: | Blue |
|---|---|
| Microcontroller | ATmega328 |
| Operating Voltage (VDC) | 5 |
| Input Supply Port | USB Mini |
| Input voltage | 7-12 V |
| Power Consumption (Watt) | 1 |
| Analog I/O Pins | 8 |
| Digital I/O Pins | 22 (6 of which are PWM) |
| PWM Output Pins | 6 |
| Architecture | AVR |
| Clock Speed | 16 MHz |
| Flash Memory | 32 KB |
| EEPROM | 1 KB |
| SRAM | 2 |
| Weight (g): | 7 |
| Length (mm): | 45 |
| Width (mm): | 18 |
| Shipping Weight | 0.019 kg |
| Shipping Dimensions | 9 × 6 × 3 cm |
This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Replacement will be done against manufacturing defects.
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Original Arduino Nano A000005
We provide a wide range of electronic components for all your needs. Whether you are working on artificial intelligence, internet of things, wireless electronics, or drones, we have got you covered. Our products are of the highest quality and offered at the best prices in the market.
