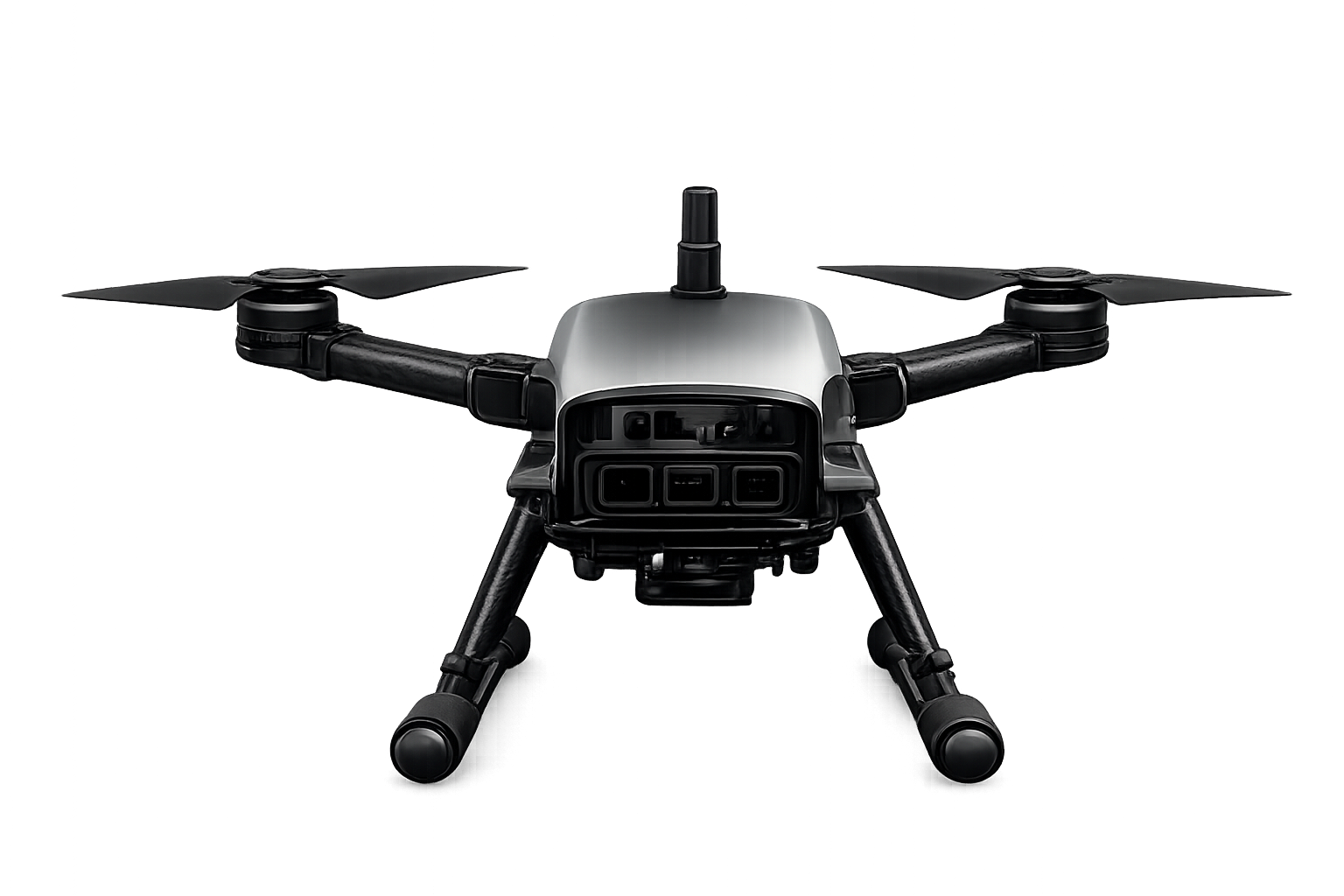

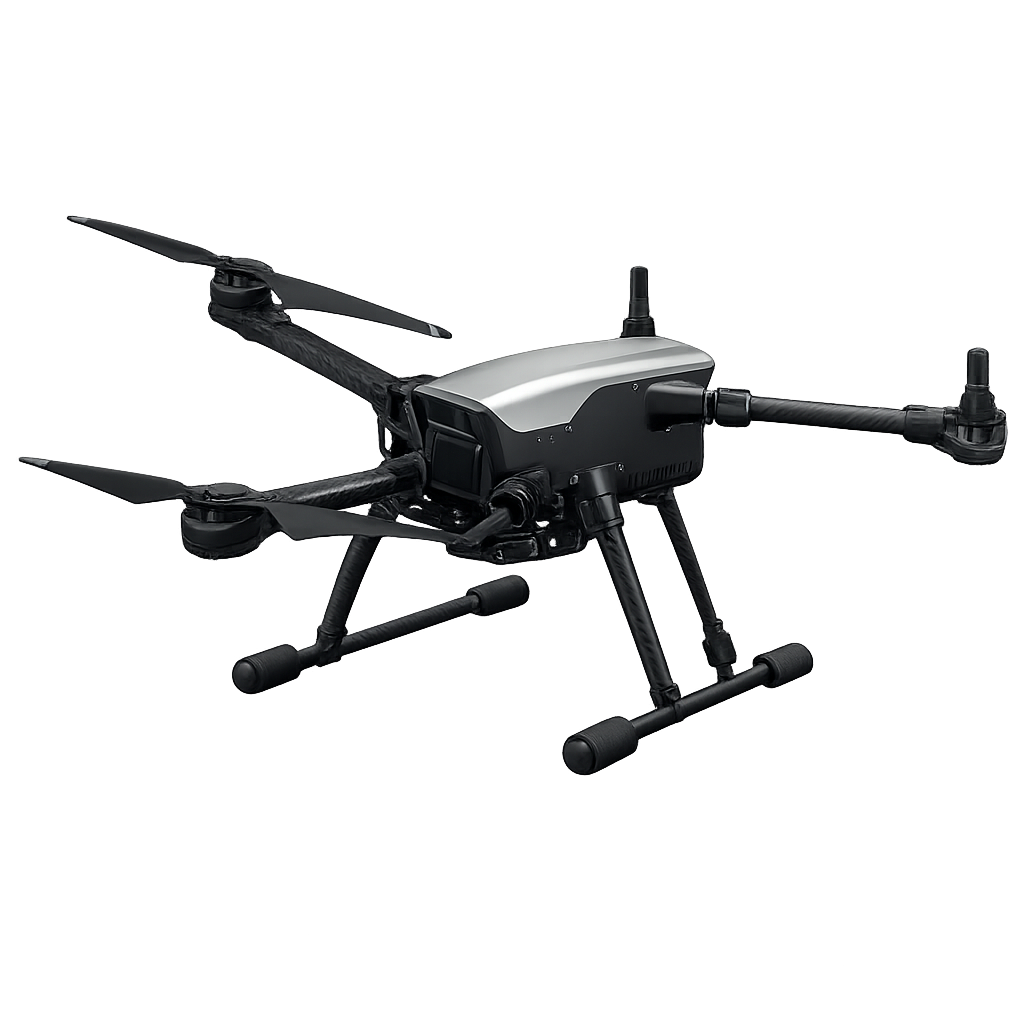

X950 Industrial Drone Frame

The X950 Industrial Drone Frame provides a rugged and modular platform for professional UAV projects. It supports applications such as precision agriculture, infrastructure inspection, mapping, and emergency response.

The X950 features a 23-inch propeller system and a spacious flight control bay. Its foldable design also makes transportation and field deployment easier. In addition, the platform supports different camera, sensor, and gimbal configurations.

For agricultural and industrial teams, the X950 offers a flexible foundation for building a customized drone. You can configure the platform according to your payload and operational requirements.

Key Features of the X950 Industrial Drone Frame

23-Inch Propeller System

The X950 supports a 23-inch propeller system for large-scale UAV configurations. Large propellers can provide efficient thrust for compatible heavy-payload builds.

As a result, the platform can support applications that require cameras, sensors, or other compatible equipment. Always select motors, propellers, batteries, and payloads according to the final drone configuration.

IP54 Protection

The X950 frame platform features an IP54 protection rating. This rating provides protection against limited dust ingress and water splashes from different directions.

Therefore, the platform can suit field operations where light moisture or dust may occur. However, an IP54 rating does not make the complete assembled drone waterproof.

Streamlined Industrial Design

The X950 uses a streamlined body design for its industrial UAV platform. The design aims to reduce unnecessary aerodynamic resistance and support stable flight.

Moreover, the streamlined structure provides a clean foundation for integrating compatible electronics and payload equipment.

Foldable Parallel Arms

The parallel arm-folding mechanism allows you to reduce the frame’s overall footprint. This makes transportation and storage more convenient.

Furthermore, the foldable design supports faster preparation during field operations.

Quick-Snap Detachable Landing Gear

The X950 uses a detachable landing gear system for easier assembly and transportation. You can remove the landing gear when the application requires a more compact setup.

This design also simplifies field transitions between different operating locations.

Spacious Flight Control Bay

The spacious flight control bay provides room for compatible flight controllers and onboard computers. The platform can accommodate systems such as ArduPilot and PX4, depending on the final configuration.

In addition, the available space helps you organize flight electronics and supporting components more efficiently.

Removable Front Cover

The removable front cover provides convenient access to the front section of the frame. This makes it easier to configure compatible payload equipment.

For example, you can use the available mounting area for LiDAR sensors, RGB cameras, multispectral cameras, or thermal imaging equipment.

Multi-Duct Cooling System

The X950 incorporates multiple cooling channels within its frame design. These channels help move air around compatible electronics and propulsion components.

As a result, the design can support better airflow around heat-producing components such as ESCs and motors.

Multiple Payload Mounting Zones

The X950 provides four dedicated payload mounting zones:

• Front
• Middle
• Rear
• Top

These mounting areas give you more flexibility when configuring cameras, gimbals, spotlights, and sensors. You can also adapt the configuration to suit different mission requirements.

Optimized Antenna Positions

The frame provides designated antenna mounting positions for compatible drone electronics. Proper antenna placement can help maintain reliable RF communication and telemetry.

Therefore, careful component installation remains important when building the complete UAV system.

X950 Industrial Drone Frame Applications

The X950 Industrial Drone Frame can support a range of professional UAV projects, including:

• Precision agriculture
• Crop monitoring
• Agricultural surveying
• Infrastructure inspection
• Mapping and surveying
• Emergency response
• LiDAR applications
• Thermal imaging
• Multispectral imaging
• Industrial drone development

Why Choose the X950 Drone Frame?

The X950 combines a large propeller platform with a modular industrial design. Its spacious electronics bay provides room for different flight-control systems and onboard equipment.

Furthermore, the foldable arms improve portability. The removable front cover simplifies payload integration. Multiple mounting zones also give you greater flexibility during drone development.

As a result, the X950 Industrial Drone Frame offers a practical foundation for custom professional UAV builds.

Package Includes

• 1 × EFT X950 Drone Frame Platform Frame Kit

Note: The package includes the frame platform and frame components only. Motors, propellers, ESCs, batteries, flight controllers, cameras, sensors, gimbals, and other electronics are not included unless specifically stated in the product listing.
