₹22,599.00 ( Incl. GST )
For using in drone applications use these voltages for failsafe
1. Battery failsafe trigger : 19.2V (20% reserve)
2. Minimum Voltage for flying : 16.2V
We build battery packs according to your specific requirement of Size, Shape, Connector type, Cell Type or Brand, and Battery Capacity. To order your custom battery pack.
1. Assembly with High performance Molicel P28A/P42A/P45B made in Taiwan.
2. Each battery pack is made with impedance matched cells for maximum performance.
3. Most compact and light weight for the capacity.
4. Longer Flight Time.
5. Higher WH/Kg than Li-Po Battery packs.
6. Superior Performance at Less than -20°C.
7. No Puffing/Bulging of Cells.

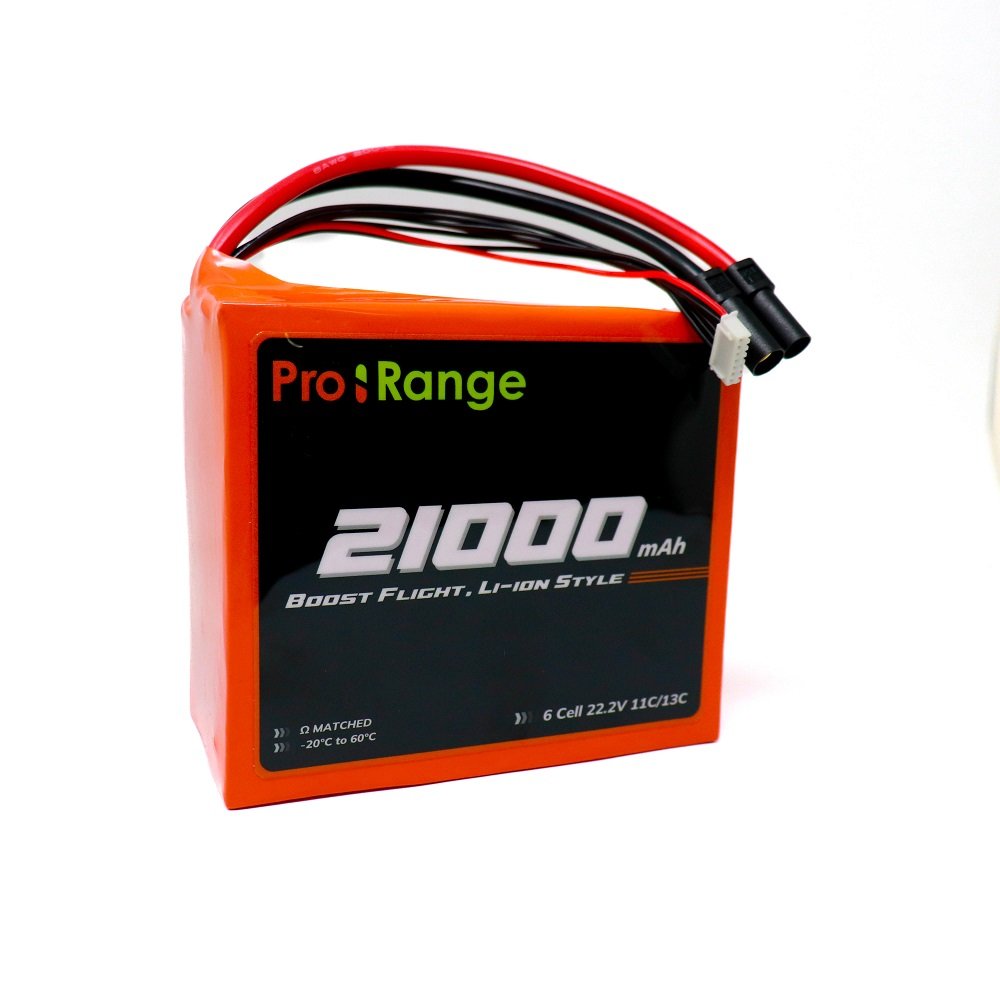

1 x Pro-Range INR 21700 P42A 22.2V 21000mAh 6S5P 190A/230A Discharge Li-ion Drone Battery Pack
| Life Cycle | 500+ |
|---|---|
| Charge Connector | JST Connector |
| Discharge connector | Amass XT150 Gold Plated Male/Female |
| Maximun Charge Voltage (V) | 25.2 |
| Nominal Voltage (V) | 22.2V |
| Discharge Rate | 9C/11C |
| Charge Temperature (°C) | 0 to 60 |
| Discharge Temperature (°C) | -20 to 60 |
| Charge Rate (C) | 1 |
| Length (mm): | 140 |
| Width (mm): | 125 |
| Height (mm): | 80 |
| Weight (g): | 2315 |
| Shipping Weight | 3.5 kg |
| Shipping Dimensions | 35 × 30 × 20 cm |
1 Year Warranty
This item is covered with a supplier warranty of 1 year from the time of delivery against manufacturing defects only. In case of manufacturing defects or issues, we will replace the part after warranty confirmation by our technical team, but we won’t offer refunds or replace the entire product.
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.
Pro-Range INR 21700 P42A 22.2V 21000mAh 6S5P 190A/230A Discharge Li-ion Drone Battery Pack
