₹3,299.00 ( Incl. GST )
The Arduino MKR WiFi 1010 is the easiest point of entry to basic IoT and pico-network application design. Whether you are looking at building a sensor network connected to your office or home router, or if you want to create a BLE device sending data to a cellphone, the MKR WiFi 1010 is your one-stop-solution for many of the basic IoT application scenarios.
The MKR WIFI 1010 is a significant improvement on the MKR 1000 WIFI. It’s equipped with an ESP32 module made by U-BLOX. This board aims to speed up and simplify the prototyping of WiFi-based IoT applications thanks to the flexibility of the ESP32 module and its low power consumption.

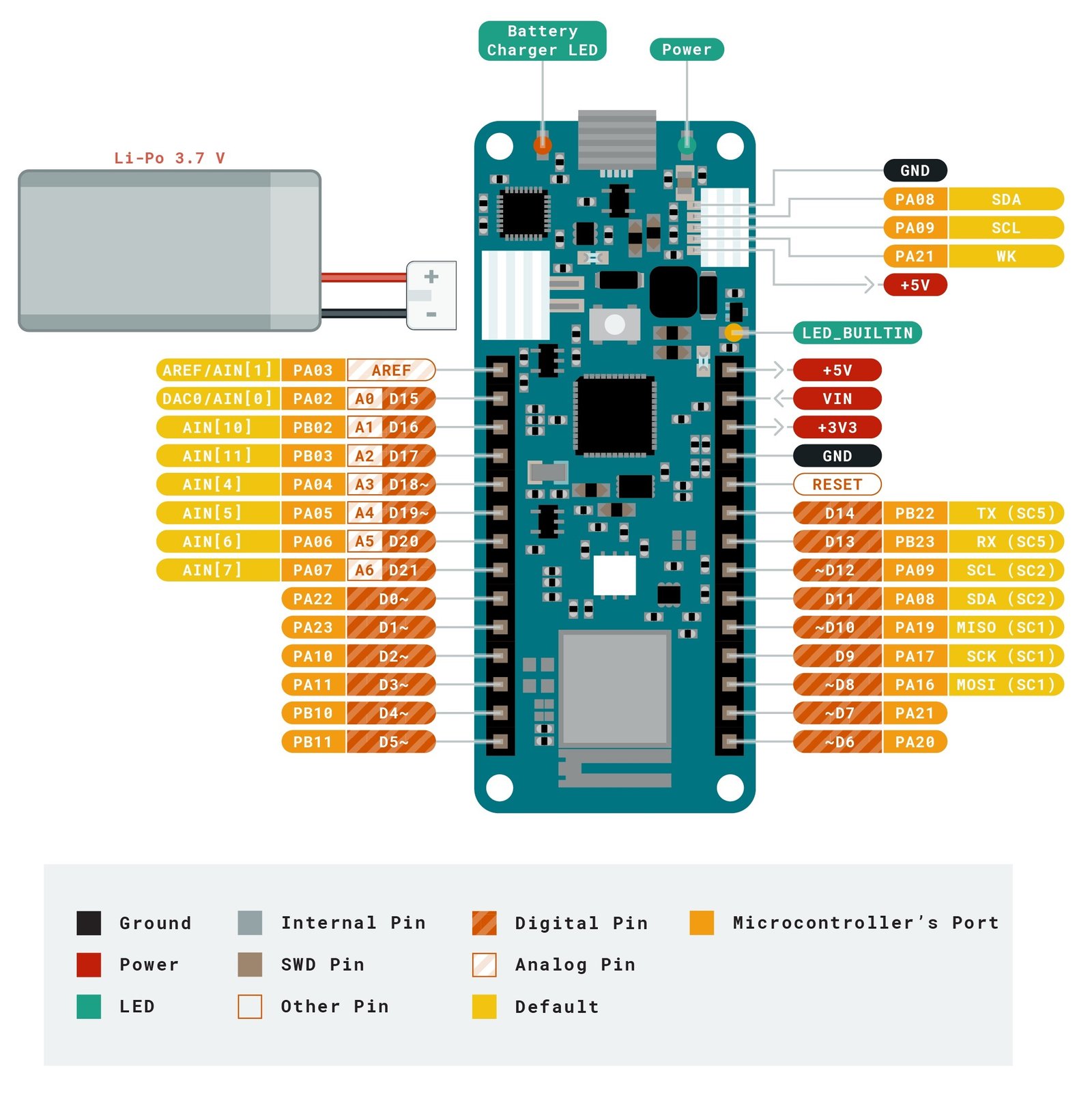

Pinout diagram:
This thin board has been designed to offer a practical and cost-effective solution for makers to design IoT projects with minimal previous experience in networking. It is based on the low power Arm® Cortex®-M0 32-bit SAMD21, which is part of the Arduino MKR family. Wireless devices specifically designed for the Internet of Things (IoT).
1 x Original Arduino MKR Wifi 1010 Board ABX00023
| Microcontroller | SAMD21 Cortex®-M0+ 32bit low power ARM MCU (datasheet) |
|---|---|
| Radio module | u-blox NINA-W102 (datasheet) |
| Board Power Supply | 5V (USB/VIN) |
| Secure Element | ATECC508 (datasheet) |
| Supported Battery | Li-Po Single Cell, 3.7V, 1024mAh Minimum |
| Circuit Operating Voltage | 3.3V |
| Digital I/O Pins | 8 |
| PWM Pins | 13 (0 .. 8, 10, 12, 18 / A3, 19 / A4) |
| Interface | 1 x UART 1 x SPI 1 x I2C |
| Analog Input Pins | 7 (ADC 8/10/12 bit) |
| Analog Output Pins | 1 (DAC 10 bit) |
| External Interrupts | 8 (0, 1, 4, 5, 6, 7, 8, 16 / A1, 17 / A2) |
| DC Current per I/O Pin | 7 mA |
| Memory | CPU Flash Memory 256 KB (internal) SRAM 32 KB EEPROM no |
| Clock Speed | 32.768 kHz (RTC), 48 MHz |
| LED_BUILTIN | 6 |
| Length (mm) | 61.5 mm |
| Width (mm) | 25 mm |
| Weight (gm) | 32 |
| Shipping Weight | 0.05 kg |
| Shipping Dimensions | 8 × 4 × 2 cm |
This item is covered with a supplier warranty of 6 months from the time of delivery against manufacturing defects only. This is a quality product from the original manufacturer. Only manufacturing defects are covered under this warranty. Replacement will be done against manufacturing defects.
If the product is subject to misuse, tampering, static discharge, accident, water or fire damage, use of chemicals & soldered or altered in any way.

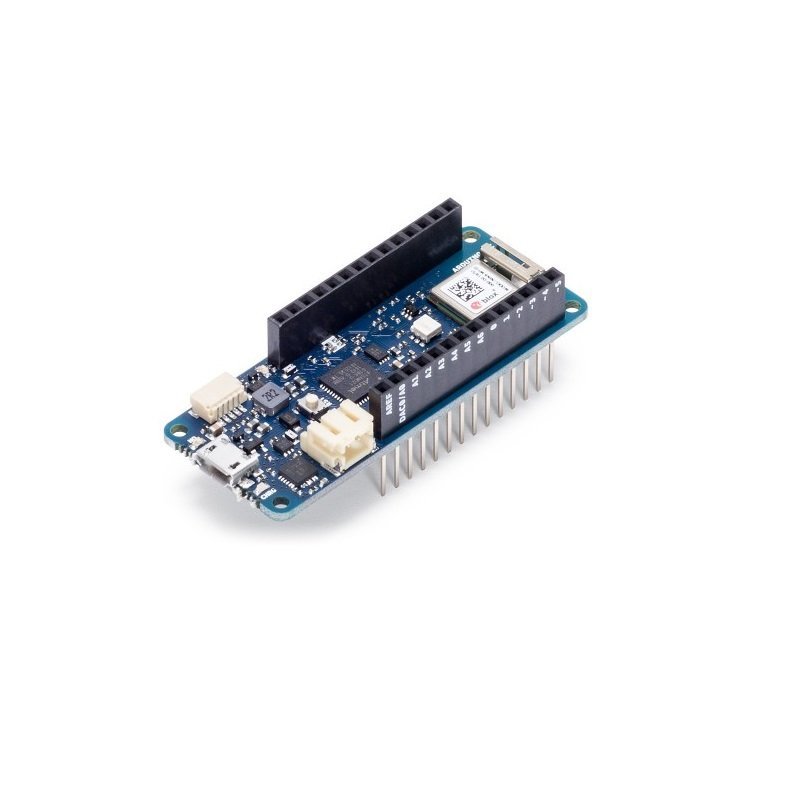

Original Arduino MKR Wifi 1010 Board ABX00023
We provide a wide range of electronic components for all your needs. Whether you are working on artificial intelligence, internet of things, wireless electronics, or drones, we have got you covered. Our products are of the highest quality and offered at the best prices in the market.
